Dragino SE02 Dual Soil Moisture & EC Sensor (LoRaWAN, NB-IoT & LTE-M)

se01-xx
se01-xx SE02-xb SE02-xb-2 se01-xx SE02-xx-sensors

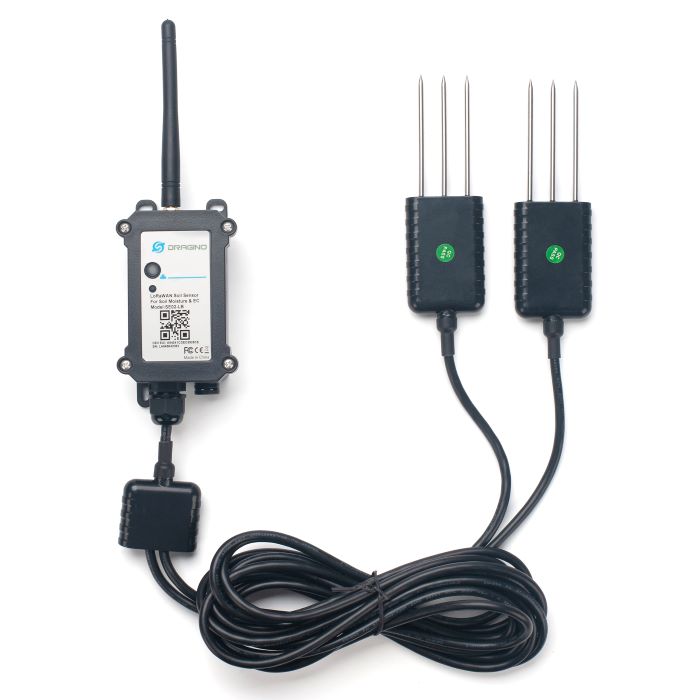

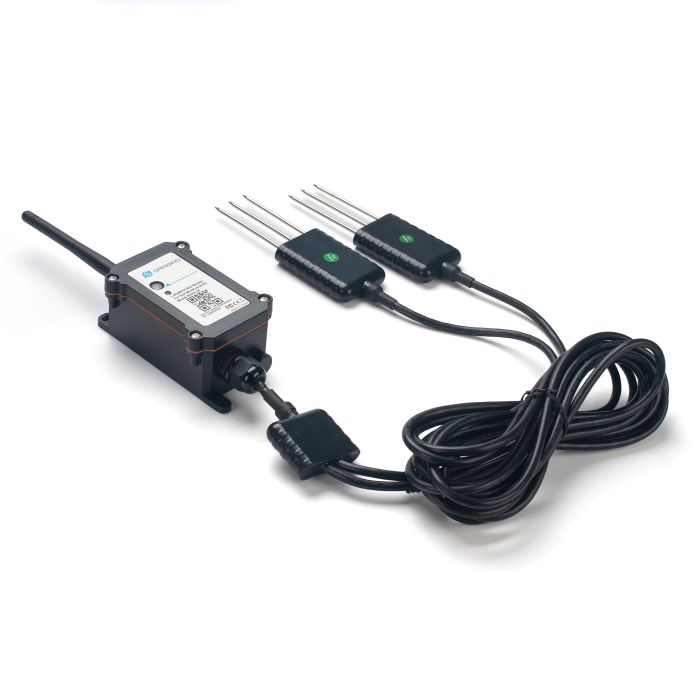

Dragino SE02 Dual Soil Moisture & EC Sensor

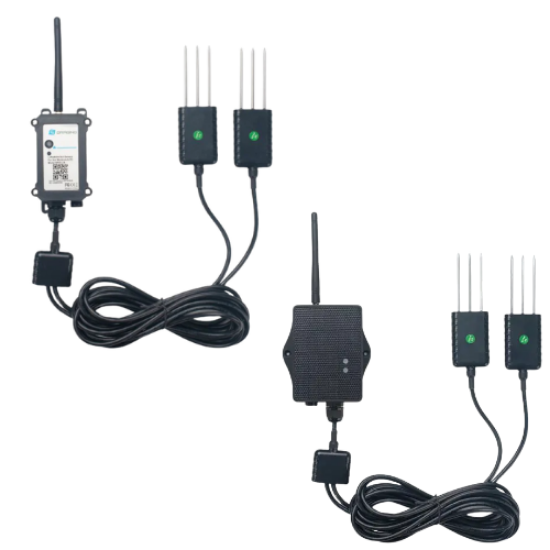

The Dragino SE02 Dual Soil Moisture and EC Sensor is designed for applications that require comparative or multi-point soil monitoring. With two connected soil probes, it allows users to observe variations in moisture and electrical conductivity across different soil depths or zones from a single device. The SE02 is available in LoRaWAN, NB-IoT and LTE-M variants and integrates seamlessly with the Telemetry2U IoT platform for visualisation, alerts and historical data analysis.

Looking for a plug-and-play solution with premium support and pricing?

Live Demo

SKU: SE02-XX
Manufacturer: Dragino
Be the first to review this product
*

Network / Power:

*

***More Details

  • Device Only
    Device Only
    Not available
  • Plug-and-Play Configuration [+$300-]
    Plug-and-Play Configuration [+$300-]
    Not available
  • 12 Month Platform Subscription - 1-Month Storage [+$40-]
    12 Month Platform Subscription - 1-Month Storage [+$40-]
    Not available
  • 12 Month Platform Subscription - 3-Months Storage [+$60-]
    12 Month Platform Subscription - 3-Months Storage [+$60-]
    Not available
  • 12 Month Platform Subscription - 12-Months Storage [+$100-]
    12 Month Platform Subscription - 12-Months Storage [+$100-]
    Not available
*

***More Details

  • No SIM Card
    No SIM Card
    Not available
  • 1NCE SIM IoT Card [+$80-]
    1NCE SIM IoT Card [+$80-]
    Not available
  • SIMBASE IoT SIM Card [+$80-]
    SIMBASE IoT SIM Card [+$80-]
    Not available
  • Telstra NB-IoT SIM Card [+$80-]
    Telstra NB-IoT SIM Card [+$80-]
    Not available
$315- +GST
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Dragino SE02 Dual Soil Moisture & EC Sensor (LoRaWAN, NB-IoT & LTE-M)

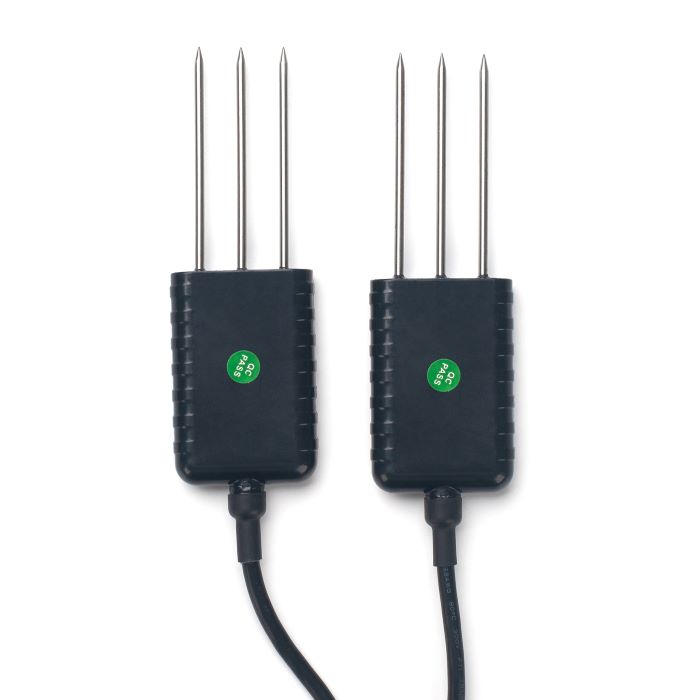

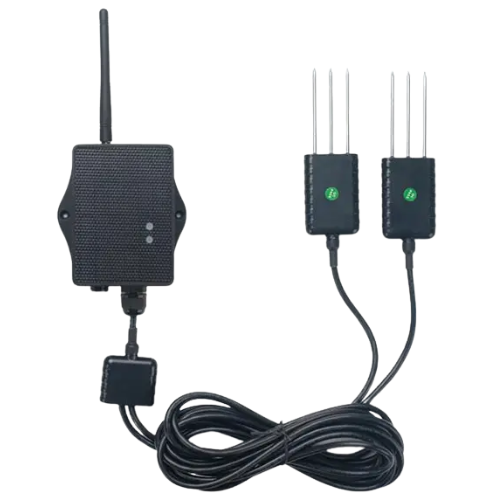

The Dragino SE02 Dual Soil Moisture and EC Sensor is designed for monitoring soil conditions across multiple points using a single device. With two connected soil probes, it enables comparison of moisture levels and electrical conductivity between different soil zones, depths, or crop rows, supporting more informed irrigation and soil management decisions.

Multi-Point Soil Monitoring The SE02 supports two simultaneous soil measurements, making it ideal for applications where comparative data is required. This includes monitoring different soil depths, adjacent growing areas, or zones with varying irrigation or soil composition.

Flexible Network Deployment The SE02 is available in LoRaWAN, NB-IoT, and LTE-M variants, allowing deployment across private LoRaWAN networks or carrier-operated cellular networks depending on site coverage and operational requirements.

Designed for Long-Term Outdoor Use Battery-powered and solar-powered variants support long-term unattended operation, making the SE02 suitable for farms, remote field installations, and environmental monitoring locations.

Enhanced Functionality with Telemetry2U Integration When integrated with the Telemetry2U IoT platform, the SE02 provides dashboards, alerts, historical data logging, and device management tools. This enables users to track soil variability over time and respond proactively to changing conditions.





Choose Wireless Network

SE02-LB LoRaWAN model, battery powered option for dual-point soil monitoring deployments.
SE02-LS LoRaWAN model, solar powered option for low-maintenance outdoor installations.
SE02-NB NB-IoT only model, battery powered option for carrier network coverage and remote sites.
SE02-NS NB-IoT only model, solar powered option for low-maintenance outdoor deployments.
SE02-CB Dual-mode LTE-M and NB-IoT model, battery powered option for flexible cellular deployments.
SE02-CS Dual-mode LTE-M and NB-IoT model, solar powered option for low-maintenance outdoor monitoring.





Combine Your Device with the Telemetry2U IoT Platform





Combine your Dragino device with the Telemetry2U IoT platform to centralise monitoring, alerts, and device management. Telemetry2U helps turn dual-sensor data into actionable insights with clear dashboards, configurable notifications, and long-term data storage.

Telemetry2U IoT Platform Features
Telemetry2U IoT Platform Overview

Check out a Live Demo of the Telemetry2U IoT Platform in Action

See how easy it is to add your own Dragino devices to Telemetry2U

Attribute name Attribute value
Specifications

Common Features:

  • Monitors soil moisture, soil temperature, and soil conductivity (EC)
  • FDR method for soil moisture measurement with temperature and conductivity compensation
  • Multiple sampling and one uplink
  • Uplink on periodically
  • Downlink to change configuration
  • Ultra low power consumption
  • Support Bluetooth (BLE) configuration and wireless OTA update
  • IP66 waterproof enclosure
  • Battery powered operation: 8500mAh Li SOCl2 (non rechargeable)
  • Optional solar powered operation with integrated solar panel and rechargeable battery





Network Specific Features and Specifications:



LoRaWAN (SE01-LB, SE01-LS):

  • LoRaWAN 1.0.3 Class A compliant
  • OTAA or ABP mode
  • LoRaWAN frequency plans: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Frequency range: 862 to 1020MHz
  • RX sensitivity: down to -139dBm
  • Max RF output: +22dBm constant RF output
  • Power consumption (sleep mode): 5uA at 3.3V
  • Power consumption (TX): 125mA at 20dBm, 82mA at 14dBm



NB-IoT (SE01-NB, SE01-NS):

  • NB-IoT (CAT-NB2) cellular connectivity
  • Uplink via MQTT, MQTTs, TCP, UDP or CoAP
  • Nano SIM card slot
  • Support BLE remote configure and update firmware
  • NB-IoT Bands (SE01-NB, SE01-NS): B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85
  • NB-IoT module: BC660K-GL
  • Max transmit current: 350mA at 3.3V
  • STOP mode: 10uA at 3.3V



LTE-M Dual Mode (SE01-CB, SE01-CS):

  • Dual mode cellular connectivity (LTE-M CAT-M1 and NB-IoT)
  • Uplink via MQTT, MQTTs, TCP, UDP or CoAP
  • Nano SIM card slot
  • Support BLE remote configure and update firmware
  • NB-IoT Bands (SE01-CB, SE01-CS): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
  • LTE-M (CAT-M1) Bands (SE01-CB, SE01-CS): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85





Common Specifications:

  • Operating temperature: -40C to +85C
  • Supply voltage (internal): 2.5V to 3.6V
  • Enclosure protection: IP66
  • Soil moisture range: 0 to 100.00 V/V %
  • Soil moisture resolution: 0.01 V/V %
  • Soil moisture accuracy: +/-3% (0 to 53%), +/-5% (>53%)
  • Soil moisture measurement method: FDR with temperature and EC compensation
  • Soil temperature range: -40C to +85C
  • Soil temperature resolution: 0.01C
  • Soil temperature accuracy: -10C to 50C: <0.3C, all other: <0.6C
  • Soil temperature measurement method: RTD, calibrated
  • Soil conductivity range: 0 to 20000 uS/cm (25C) (0 to 20.0EC)
  • Soil conductivity resolution: 1 uS/cm
  • Soil conductivity accuracy: 2%FS
  • Soil conductivity measurement method: conductivity with temperature compensation





Applications:

  • Irrigation scheduling based on soil moisture trends
  • Greenhouse and nursery soil condition monitoring
  • Orchard and vineyard soil moisture and salinity tracking
  • Farmland soil research and long term field trials
  • Soil salinity and conductivity monitoring in problem soils
  • General smart agriculture deployments using LoRaWAN or cellular LPWAN





Package Includes:

  • SE01 Soil Moisture and EC Sensor x 1
  • External antenna x 1




Package contents

Package Includes:

  • SE01-NB NB-IoT Soil Moisture & EC Sensor x 1
  • External antenna x 1



Dimension and weight:

  • Device Size: 195 * 125 * 55 mm
  • Device Weight: 420 g
Documents

DataSheet, Document Base

User Manual -- Online Latest

Shared Folder for all Dragino Products
