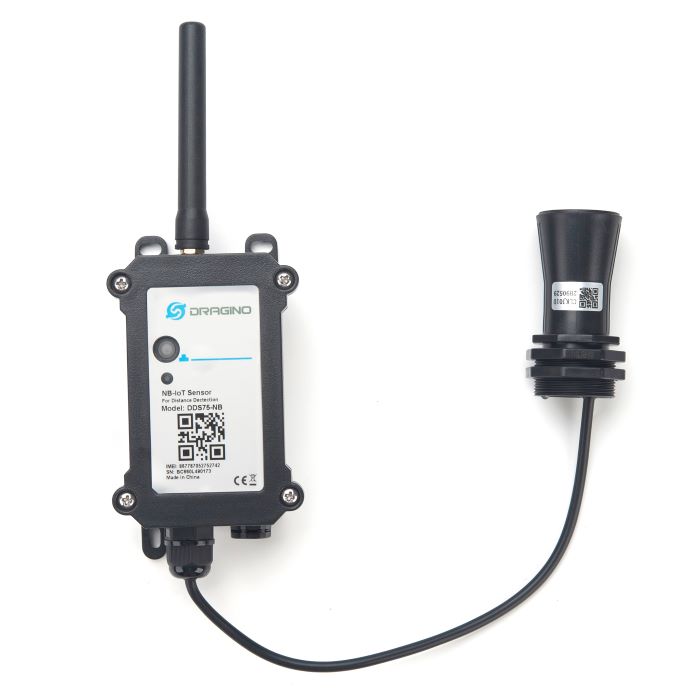

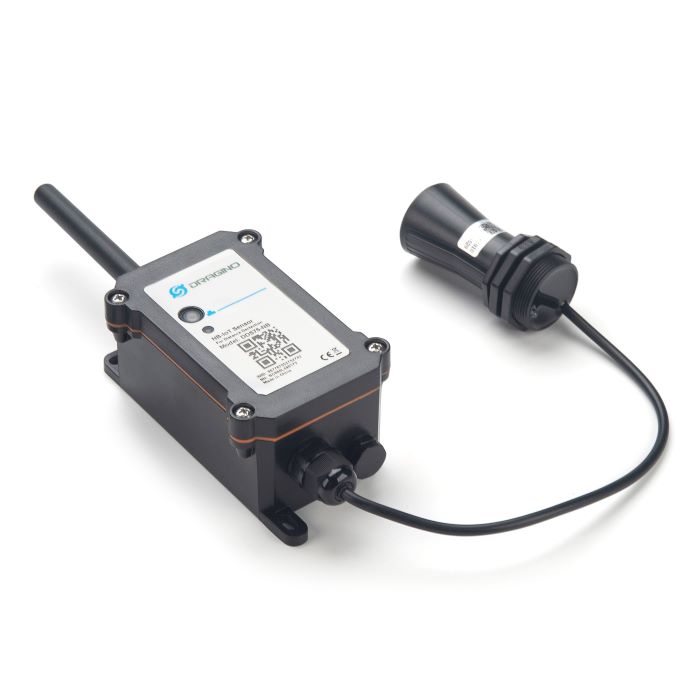

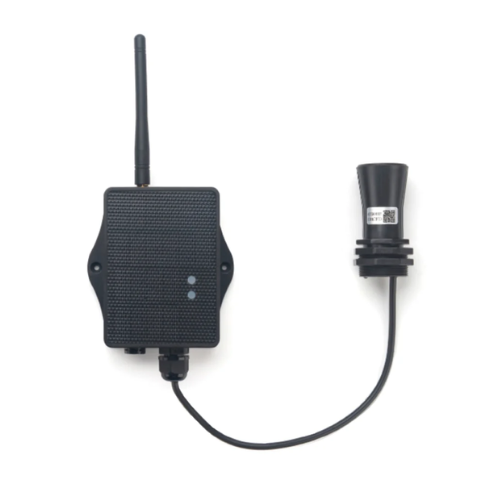

Dragino DDS75 Ultrasonic Distance Sensor (LoRaWAN, NB-IoT & LTE-M)
The Dragino DDS75 Ultrasonic Distance Sensor is designed for non-contact distance and liquid level monitoring across LoRaWAN, NB-IoT, and LTE-M networks. It uses ultrasonic measurement technology to provide reliable readings in applications where physical contact with the measured surface is not suitable.
Suitable for Level and Distance Monitoring The DDS75 is commonly used for tank level monitoring, water and wastewater infrastructure, silo and bin monitoring, and industrial distance measurement applications. Its non-contact design helps reduce maintenance requirements and avoids issues associated with pressure-based or submerged sensors.
Multi-Network Connectivity The DDS75 platform is available in variants supporting LoRaWAN, NB-IoT, and LTE-M, allowing deployment on private LoRaWAN networks or carrier-operated cellular networks depending on coverage and site requirements.
Flexible Power Options Battery-powered and solar-powered variants are available, supporting long-term unattended operation in outdoor and remote environments.
Enhanced Functionality with Telemetry2U Integration When connected to the Telemetry2U IoT platform, the DDS75 supports dashboards, historical data logging, alerts, and device management, helping convert distance measurements into actionable monitoring outcomes.

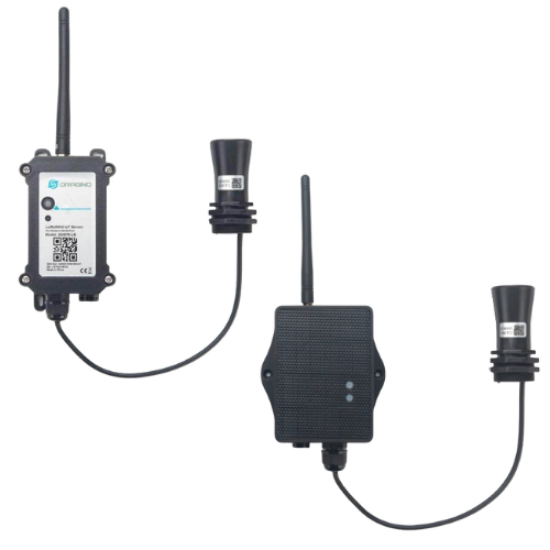

| DDS75-LB |
LoRaWAN model, battery powered option for long-life distance and level monitoring. |
| DDS75-LS |
LoRaWAN model, solar powered option for low-maintenance outdoor installations. |
| DDS75-NB |
NB-IoT only model, battery powered option for carrier network coverage and deep indoor penetration. |
| DDS75-NS |
NB-IoT only model, solar powered option for low-maintenance outdoor deployments. |
| DDS75-CB |
Dual-mode LTE-M and NB-IoT model, battery powered option for broader cellular use cases. |
| DDS75-CS |
Dual-mode LTE-M and NB-IoT model, solar powered option for low-maintenance outdoor installations. |
Combine Your Device with the Telemetry2U IoT Platform
Combine your Dragino device with the Telemetry2U IoT platform to bring monitoring, alerts, and device management into one place. Telemetry2U helps you move from raw sensor readings to usable outcomes, with clear dashboards, configurable notifications, and practical tools to support ongoing operations.
| Attribute name |
Attribute value |
|
Specifications
|
Common Features:
- Ultrasonic distance detection for measuring distance to a flat object
- Flat object measurement range: 280mm to 7500mm
- Temperature compensation for improved measurement reliability
- Accuracy: +/- (1cm + S*0.3%) (S: Distance)
- Measure angle: 40 degrees
- Ultra-low power consumption for long-term deployments
- Uplink on periodically
- AT commands to change parameters
- Supports Bluetooth (BLE) configuration
- Supports wireless OTA firmware update
- IP66 waterproof enclosure
- Battery powered operation: 8500mAh Li/SOCl2 (non-rechargeable)
- Optional solar powered operation with integrated solar panel and rechargeable battery (where applicable)
Network Specific Features and Specifications (DDS75-LB, DDS75-LS):
- LoRaWAN 1.0.3 Class A compliant
- Supported frequency bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
- LoRa frequency range: 862 to 1020MHz
- LoRa receiver sensitivity: down to -139dBm
- Max RF output: +22dBm constant RF output
Network Specific Features and Specifications (DDS75-NB, DDS75-NS):
- NB-IoT (CAT-NB2) cellular connectivity
- Nano SIM card slot
- Uplink via MQTT, MQTTs, TCP, UDP or CoAP
- NB-IoT Bands (DDS75-NB, DDS75-NS): B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
Network Specific Features and Specifications (DDS75-CB, DDS75-CS):
- Dual-mode cellular connectivity: LTE-M (CAT-M1) and NB-IoT (CAT-NB2)
- Nano SIM card slot
- Uplink via MQTT, MQTTs, TCP, UDP or CoAP
- Cellular module referenced by distributor listings: Quectel BG95 series (LTE Cat M1 / Cat NB2) with GPS support
- LTE-M (CAT-M1) Bands (DDS75-CB, DDS75-CS): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
- NB-IoT (CAT-NB2) Bands (DDS75-CB, DDS75-CS): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Common Specifications:
- Microcontroller: 48MHz ARM MCU, 64KB RAM, 256KB Flash
- Operating temperature: -40C to +85C
- Supply voltage (internal): 2.5V to 3.6V
- Battery capacity (battery model): 8500mAh Li/SOCl2
- Battery self-discharge: <1% per year at 25C
- Battery max continuous current: 130mA
- Battery max boost current: 2A for 1 second
Applications:
- Tank level monitoring (non-contact level measurement)
- Water infrastructure level monitoring (channels, pits, sumps)
- Silo and hopper level monitoring
- Waste bin fill level monitoring
- Smart parking distance and presence detection
- Object proximity and presence detection for automation
- Sewer level monitoring (where non-contact sensing is required)
Package Includes:
- DDS75 distance detection sensor x 1
- External antenna x 1 (cellular models)
Dimensions and weight - Battery version:
- Package Size / pcs: 150*120*55 mm
- Weight / pcs: 220 g
Dimensions and weight - Solar version:
- Package Size / pcs:
- Weight / pcs:
|
|
