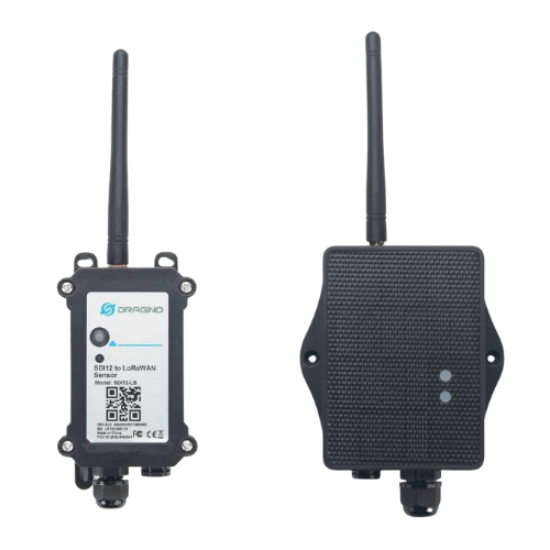

Dragino RS485 Sensor Interface (LoRaWAN, NB-IoT & LTE-M)

RS485-XX
RS485-XX RS485-XB RS485-XB-1 RS485-XS

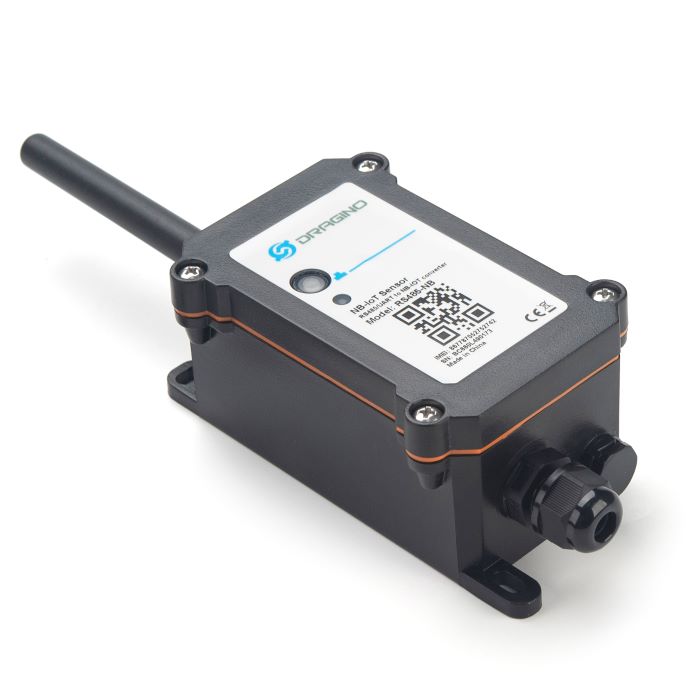

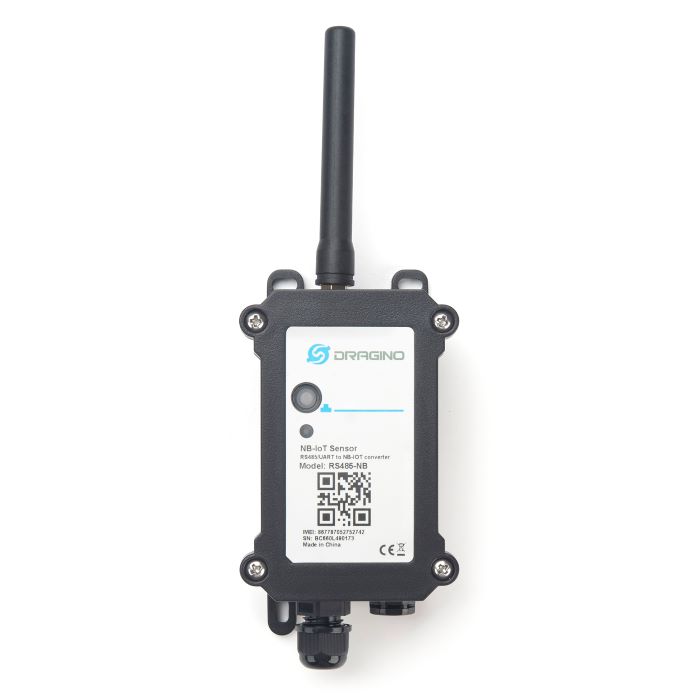

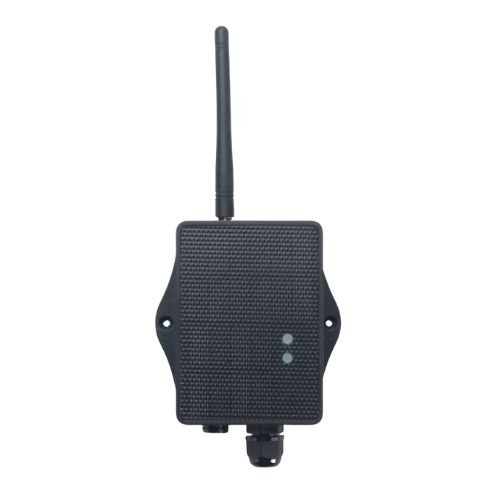

Dragino RS485 Sensor Interface

Connect RS485 and Modbus sensors to the Telemetry2U IoT platform using the Dragino RS485 Sensor Interface. This parent product supports LoRaWAN, NB-IoT and LTE-M variants, allowing reliable data collection from industrial and environmental sensors across private and carrier-operated networks.

Looking for a plug-and-play solution with premium support and pricing?

Live Demo

SKU: RS485-XX
Manufacturer: Dragino
Be the first to review this product
*

Network / Power:

*

***More Details

  • Device Only
    Device Only
    Not available
  • Plug-and-Play Configuration [+$300-]
    Plug-and-Play Configuration [+$300-]
    Not available
  • 12 Month Platform Subscription - 1-Month Storage [+$40-]
    12 Month Platform Subscription - 1-Month Storage [+$40-]
    Not available
  • 12 Month Platform Subscription - 3-Months Storage [+$60-]
    12 Month Platform Subscription - 3-Months Storage [+$60-]
    Not available
  • 12 Month Platform Subscription - 12-Months Storage [+$100-]
    12 Month Platform Subscription - 12-Months Storage [+$100-]
    Not available
*

***More Details

  • No SIM Card
    No SIM Card
    Not available
  • 1NCE SIM IoT Card [+$80-]
    1NCE SIM IoT Card [+$80-]
    Not available
  • SIMBASE IoT SIM Card [+$80-]
    SIMBASE IoT SIM Card [+$80-]
    Not available
  • Telstra NB-IoT SIM Card [+$80-]
    Telstra NB-IoT SIM Card [+$80-]
    Not available
$135- +GST
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Dragino RS485 Sensor Interface (LoRaWAN, NB-IoT & LTE-M)



The Dragino RS485 Sensor Interface is designed to connect RS485 and Modbus sensors to long-range, low-power wireless networks using LoRaWAN, NB-IoT, or LTE-M. It provides a practical way to bring existing industrial and environmental sensors into modern cloud-based monitoring systems without replacing field hardware.

Multi-Network Connectivity This parent product covers multiple network variants, allowing you to select the most suitable connectivity option based on site conditions, coverage, and deployment requirements. LoRaWAN models are well suited to private gateways and long-range outdoor deployments, while NB-IoT and LTE-M variants support carrier-operated networks with strong penetration and wide-area coverage.

RS485 and Modbus Sensor Integration The RS485 interface is commonly used for Modbus RTU sensors, meters, and controllers. The Dragino RS485 device enables reliable data transmission from these sensors into cloud platforms for monitoring and analysis.

Flexible Power Options Battery-powered and solar-powered variants are available across the range, supporting low-maintenance operation in remote or unattended locations.

Enhanced Functionality with Telemetry2U Integration While the Dragino RS485 Sensor Interface can be connected to other platforms, Telemetry2U is the recommended option for customers seeking a supported, end-to-end monitoring solution. When combined with the Telemetry2U IoT platform, devices can be configured with dashboards, historical data logging, alerts, and device management tools.





Choose Wireless Network

RS485-LB LoRaWAN model, battery powered option for connecting RS485 and Modbus sensors to private or public LoRaWAN networks.
RS485-LS LoRaWAN model, solar powered option for low-maintenance outdoor RS485 sensor deployments.
RS485-NB NB-IoT only model, battery powered option for carrier network coverage and deep indoor penetration.
RS485-NS NB-IoT only model, solar powered option for low-maintenance outdoor RS485 monitoring deployments.
RS485-CB Dual-mode LTE-M and NB-IoT model, battery powered option for broader cellular deployments and mobility use cases.
RS485-CS Dual-mode LTE-M and NB-IoT model, solar powered option for low-maintenance outdoor deployments.





Combine Your Device with the Telemetry2U IoT Platform





Combine your Dragino device with the Telemetry2U IoT platform to bring monitoring, alerts, and device management into one place. Telemetry2U helps you move from raw sensor readings to usable outcomes, with clear dashboards, configurable notifications, and practical tools to support ongoing operations.

Telemetry2U IoT Platform Features
Telemetry2U IoT Platform Overview

Check out a Live Demo of the Telemetry2U IoT Platform in Action

See how easy it is to add your own Dragino devices to Telemetry2U

Attribute name Attribute value
Documents

DataSheet, Document Base

User Manual -- Online Latest

Shared Folder for all Dragino Products
Specifications

Common Features:

  • Available models: RS485-LB, RS485-LS, RS485-NB, RS485-NS, RS485-CB, RS485-CS
  • RS485 and UART sensor interface for LoRaWAN, NB-IoT, and LTE-M networks
  • Supports RS485 sensors, 3.3V or 5V UART sensors, and interrupt sensors
  • Controllable 3.3V and 5V outputs to power external sensors
  • Supports multiple RS485 devices using flexible rule configuration
  • Supports Modbus RTU protocol
  • Supports interrupt uplinks
  • Multiple sampling and single uplink support
  • Bluetooth v5.1 configuration and wireless OTA firmware update
  • IP67 waterproof enclosure
  • Battery powered using 8500mAh Li-SOCl2 battery
  • Optional solar powered version with integrated solar panel and rechargeable battery





Network Specific Features and Specifications:



LoRaWAN Models (RS485-LB, RS485-LS)

  • LoRaWAN 1.0.3 Class A compliant
  • Supported frequency bands: CN470, EU433, KR920, US915, EU868, AS923, AU915, IN865, RU864, MA869
  • Supports OTAA and ABP activation
  • Receiver sensitivity down to -139dBm
  • Maximum RF output power up to 22dBm
  • Power options: battery (LB) or solar with rechargeable battery (LS)



NB-IoT Models (RS485-NB, RS485-NS)

  • NB-IoT cellular connectivity (CAT-NB2)
  • Nano SIM card slot
  • Uplink protocols: MQTT, MQTTs, TCP, UDP
  • Supported NB-IoT bands: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B28, B66, B70, B85
  • STOP mode current approximately 10uA at 3.3V
  • Maximum transmit current approximately 350mA at 3.3V



Dual Mode LTE-M and NB-IoT Models (RS485-CB, RS485-CS)

  • Dual mode LTE-M (CAT-M1) and NB-IoT (CAT-NB2) connectivity
  • Nano SIM card slot
  • Uplink protocols: MQTT, MQTTs, TCP, UDP
  • Supported LTE-M bands: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B28, B66, B70, B85
  • Supported NB-IoT bands: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B28, B66, B70, B85





Common Specifications:

  • Supply voltage: 2.5V to 3.6V
  • Operating temperature: -40C to 85C
  • Battery capacity: 8500mAh Li-SOCl2
  • Self discharge less than 1 percent per year at 25C





Applications:

  • RS485 and Modbus RTU sensor monitoring
  • Industrial equipment monitoring
  • Smart agriculture sensor integration
  • Building automation systems
  • Water and utility infrastructure monitoring
  • Remote telemetry deployments





Package Includes:

  • RS485 sensor interface device
  • External antenna x 1





Dimensions and Weight:

  • Package size per unit:
  • Weight per unit:
