LAQ4 LoRaWAN IoT VOC/eCO2/Temp/Humidity Sensor

New customers will enjoy 60-Day's FREE access on Telemetry2Us' IoT Platform. Read more here...

The Dragino LAQ4 Indoor Air Quality Sensor combines a VOC (Volatile Organic Compounds), eCO2 (Equivalent Carbon Dioxide), Temperature and Humidity sensors all in one package. It is battery operated with an expected life of 7-10 months depending on environmental conditions. It will immediately send an up-link if any sensor exceeds your threshold and it also has a data logging function so you can manually download your data in emergency situations. You can also calibrate the VOC and ECO2 for greater accuracy.

Looking for a plug-and-play solution with premium support and pricing?

Telemetry2U has a live demo of a Dragino LAQ4 Air Quality meter running on our IoT Platform here.

*** Please note that items purchased from the store only include e-mail support. The configuration and installation is the users’ responsibility. If you require a higher level of support please contact sales for a quote on premium services.

SKU: LAQ4
Manufacturer: Dragino
*
$145- +GST
Availability: In stock
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Dragino LAQ4 allows users to measure and send data, reaching ultra-long ranges via a LoRaWAN network. It provides spread spectrum communication and high interference immunity whilst minimizing power consumption. It is a reliable and simple solution for critical air quality monitoring applications, including laboratory and hospital environments and Green Houses.

It runs on a user replaceable 4000mA/h Lithium battery that is expected to last around 7-12 months depending on the environment.  It includes an internal memory capable of storing data records with a date/time stamp that can be retrieved via the supplied programming cable (USB-TTL converter will be required and is sold separately).  Alternatively, stored data can be polled from the LAQ4 via downlink commands, meaning data can be retrieved if the server temporarily goes down. The LAQ4 is pre-programmed to send records every 20 minutes, with capability to be customized to suit user needs.

It also has an alarm function, meaning if either sensor deiviates past a programmable setpoint, the device will immediately trigger and uplink with the sensor values and the alarm status that it can be used to trigger and E-mail, SMS or voice alert through Telemetry2U.

The Dragino LAQ4 can be calibrated manually with a push-button, but it can also do a daily auto calibration based on the best air quality readings over the previous 24 hours.  This great helps to improve the accuracy.  By default, it is set for manual calibration.

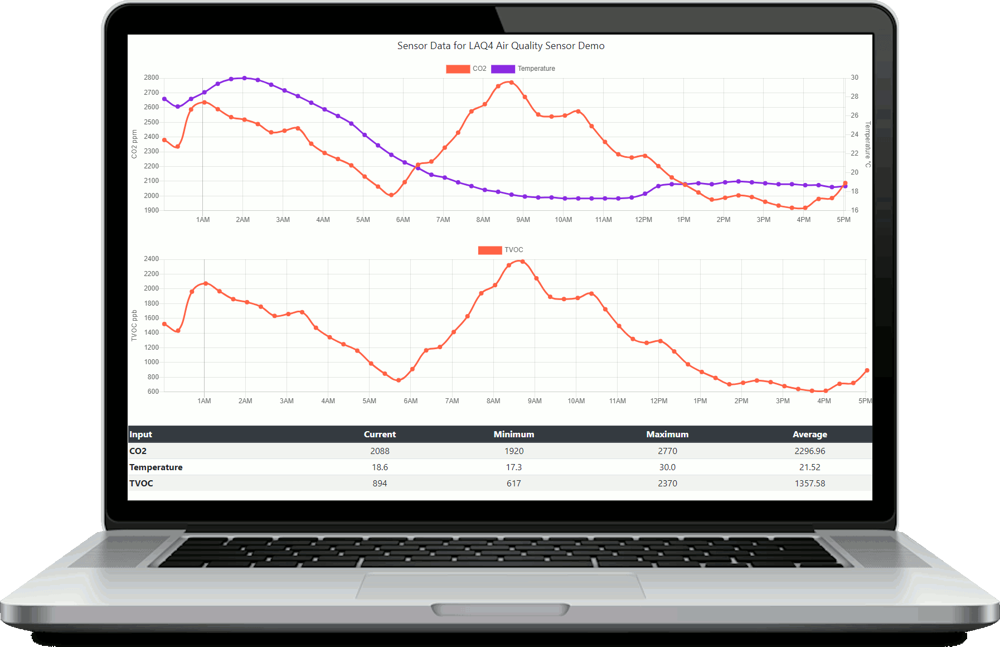

Telemetry2U has a live demo of a Dragino LAQ4 Air Quality meter running on our IoT Platform .

You can also read more about the Dragino LAQ4 air quality meter and its potential use cases on our applications page.









Combine you LoRaWAN Device with our IoT Platform





Combine your LoRaWAN devices with Telemetry2U's IoT platform to fully harness the power of the Internet of Things. Access all the features you need in one place, allowing you to monitor data and control devices from anywhere, anytime.

IoT Platform Features

Refer to our Quick Guide to help get started - you'll be up an running in no time!

Attribute nameAttribute value
Features
  • LoRaWAN class A protocol
  • Ultra-low power consumption
  • AT Commands to change parameters
  • Remote configure parameters via LoRaWAN downlink
  • Firmware upgradable via programming port
  • 4000mAh battery with 7-10 month lifespan*
  • Built-in VOC, eCO2, temperature & humidity sensor
  • 3200 set sensor record with time stamp
  • Internal Memory
  • Manual or Auto Calibrate function
Specifications

Common DC Characteristics:

  • Supply Voltage: built in 4000mAh Li-SOCI2 battery
  • Operating Temperature: -40 ~ 85°C


TVOC Sensor:

  • 0ppb to 29206 ppb. Values outside this range are clipped
  • Temperature and Humidity Compensation


eCO2 Sensor:

  • 400ppm to 32768 ppm. Values outside this range are clipped
    Note: eCO2 (equivalent calculated carbon-dioxide) is different things vs the real CO2. It is calculated by TVOC value.
  • Temperature and Humidity Compensation


Temperature Sensor:

  • Range: -40 to + 80°C
  • Accuracy: Typ ±0.3 @ 0-90 °C
  • Resolution: 0.01°C
  • Long Term Shift: Typ  <0.02 °C/yr



Relative Humidity Sensor:

  • Range: 0 ~ 99.9% RH
  • Accuracy: ± 3%RH ( 0 ~ 100%RH)
  • Resolution: 0.04% RH
  • Long Term Shift: <0.25 %RH/yr


Power Consumption:

  • Deep Sleep Mode / IDLE Mode: 9uA
  • Sampling Mode: 11.8mA @ 2s for every 60 seconds.
  • LoRaWAN Transmit Mode: 125mA.


Battery Life:

  • 7 ~ 10 months.
Applications
  • Laboratory Air Quality Monitoring
  • IVF Laboratory Air Quality Monitoring
  • Hospitals
  • Green House
  • Home enviroments

Dimensions and weight
  • Device size (mm/pcs):110 x 70 x 30mm
  • Device weight: 130g
  • Package size (mm/pcs):145 x 80 x 50mm
  • Package weight: 200g
Package contents
  • 1 x Dragino LAQ4 Air Quality Sensor
