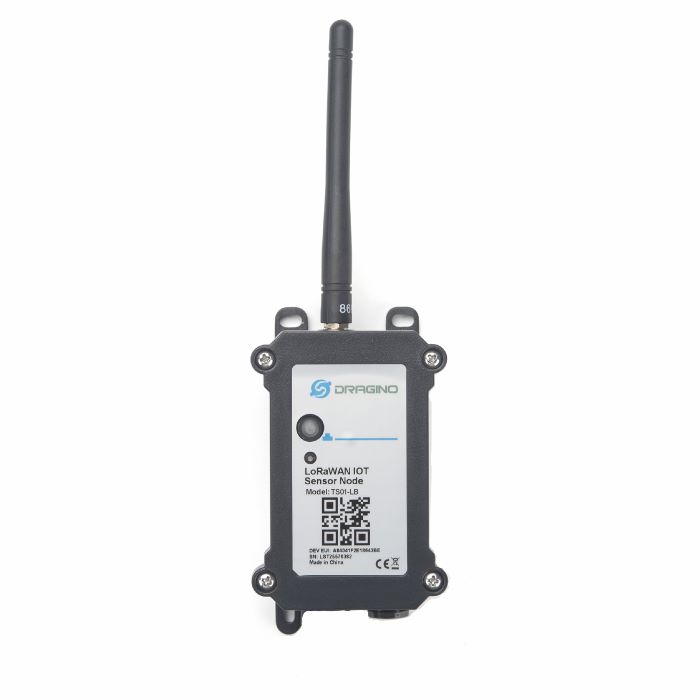

Dragino TS01 Tilt Sensor (LoRaWAN, NB-IoT & LTE-M)

Picture of Dragino TS01 Tilt Sensor (LoRaWAN, NB-IoT & LTE-M)
Picture of Dragino TS01 Tilt Sensor (LoRaWAN, NB-IoT & LTE-M) ts01-xb ts01-xs

Dragino TS01 Tilt Sensor

The Dragino TS01 Tilt Sensor is a low power device designed to detect tilt and movement for monitoring equipment position, asset movement, and structural changes. It is available across LoRaWAN, NB-IoT, and LTE-M networks, making it suitable for both private networks and carrier-based deployments.

When integrated with the Telemetry2U IoT platform, the TS01 provides clear dashboards, historical data logging, and configurable alerts to help users quickly respond to unexpected movement or changes in orientation.

Looking for a plug-and-play solution with premium support and pricing?

Live Demo

SKU: TS01-XX
Manufacturer: Dragino
Be the first to review this product
*

Network / Power:

*

***More Details

  • Device Only
    Device Only
    Not available
  • Plug-and-Play Configuration [+$300-]
    Plug-and-Play Configuration [+$300-]
    Not available
  • 12 Month Platform Subscription - 1-Month Storage [+$40-]
    12 Month Platform Subscription - 1-Month Storage [+$40-]
    Not available
  • 12 Month Platform Subscription - 3-Months Storage [+$60-]
    12 Month Platform Subscription - 3-Months Storage [+$60-]
    Not available
  • 12 Month Platform Subscription - 12-Months Storage [+$100-]
    12 Month Platform Subscription - 12-Months Storage [+$100-]
    Not available
*

***More Details

  • No SIM Card
    No SIM Card
    Not available
  • 1NCE SIM IoT Card [+$80-]
    1NCE SIM IoT Card [+$80-]
    Not available
  • SIMBASE IoT SIM Card [+$80-]
    SIMBASE IoT SIM Card [+$80-]
    Not available
  • Telstra NB-IoT SIM Card [+$80-]
    Telstra NB-IoT SIM Card [+$80-]
    Not available
$150- +GST
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Dragino TS01 Tilt Sensor (LoRaWAN, NB-IoT & LTE-M)



The Dragino TS01 Tilt Sensor is a low power device designed to detect tilt, inclination, and movement in fixed or mobile assets. It is commonly used for monitoring equipment position, detecting unauthorised movement, and identifying changes in orientation across industrial, infrastructure, and asset monitoring applications.

Multi-Network Connectivity The TS01 is available in variants supporting LoRaWAN, NB-IoT, and LTE-M, allowing deployments across private LoRaWAN networks or carrier-managed cellular networks. This flexibility ensures reliable connectivity in both remote outdoor environments and urban or indoor locations.

Designed for Long-Term Monitoring With low power operation and robust enclosure options, the TS01 is suited to long-term unattended monitoring. It can be installed on assets, structures, or equipment where ongoing position monitoring is required without frequent maintenance.

Enhanced Value with Telemetry2U Integration When connected to the Telemetry2U IoT platform, the TS01 delivers practical outcomes through real-time dashboards, historical data storage, and configurable alerts. Users can track movement events, review trends over time, and receive notifications when thresholds are exceeded, all from a single, supported platform.





Choose Wireless Network

TS01-LB LoRaWAN model, battery powered option for long-term tilt and movement monitoring.
TS01-LS LoRaWAN model, solar powered option for low-maintenance outdoor deployments.
TS01-NB NB-IoT only model, battery powered option for carrier network coverage.
TS01-NS NB-IoT only model, solar powered option for low-maintenance installations.
TS01-CB Dual-mode LTE-M and NB-IoT model, battery powered option for broader cellular use cases.
TS01-CS Dual-mode LTE-M and NB-IoT model, solar powered option for low-maintenance deployments.





Combine Your Device with the Telemetry2U IoT Platform





Combine your Dragino device with the Telemetry2U IoT platform to bring monitoring, alerts, and device management into one place. Telemetry2U helps you move from raw sensor readings to usable outcomes, with clear dashboards, configurable notifications, and practical tools to support ongoing operations.

Telemetry2U IoT Platform Features
Telemetry2U IoT Platform Overview

Check out a Live Demo of the Telemetry2U IoT Platform in Action

See how easy it is to add your own Dragino devices to Telemetry2U

Attribute name Attribute value
Specifications

Common Features:

  • Outdoor tilt sensor for monitoring pitch and roll angle
  • Detects angle changes on trees, buildings, poles, and large scale equipment
  • Supports Angle Alarm
  • Supports datalog feature
  • Multiple Sampling and one uplink
  • Uplink on periodically
  • Downlink to change configuration
  • Supports Bluetooth v5.1 remote configuration and firmware updates





Network Specific Features and Specifications:



LoRaWAN Features and Specifications (TS01-LB, TS01-LS):

  • LoRaWAN v1.0.3 Class A compliant
  • LoRaWAN frequency plans supported: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Ultra-low power consumption
  • Battery powered operation: 8500mAh Li/SOCl2 (non-rechargeable) (TS01-LB)
  • Optional solar powered operation with solar panel and Li-ion battery (TS01-LS)



NB-IoT Features and Specifications (TS01-NB):

  • NB-IoT (CAT-NB2) cellular connectivity
  • Uplink via MQTT, MQTTs, TCP, or UDP
  • Nano SIM card slot
  • NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85



LTE-M and NB-IoT Features and Specifications (TS01-CB, TS01-CS):

  • Dual-mode cellular connectivity: CAT-M1 / LTE-M and NB-IoT
  • Uplink via MQTT, MQTTs, TCP, or UDP
  • Nano SIM card slot
  • NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
  • CAT-M1 / LTE-M Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
  • Battery powered operation: 8500mAh Li/SOCl2 (non-rechargeable) (TS01-CB)
  • Optional solar powered operation with solar panel and 3000mAh Li-ion battery (TS01-CS)





Common Specifications:

  • Supply voltage (internal): 2.5V to 3.6V
  • Operating temperature: -40C to 85C
  • Angle measurement: Pitch and Roll
  • Accuracy: 0.3
  • Battery self-discharge: <1% per year at 25C
  • Battery max continuous current: 130mA
  • Battery max boost current: 2A for 1 second
  • Power consumption: STOP mode 10uA at 3.3V
  • Max transmit current: 350mA at 3.3V





Applications:

  • Tilt monitoring for trees and arboriculture risk management
  • Building and structure movement monitoring
  • Pole and mast inclination monitoring
  • Slope and embankment movement indication
  • Asset condition monitoring for large equipment
  • Remote site monitoring where cabling is impractical





Package Includes:

  • TS01 Tilt Sensor x 1 (model variant as ordered)

Dimensions and weight - Battery version (TS01-LB, TS01-NB, TS01-CB):

  • Package Size / pcs: 150*120*55 mm
  • Weight / pcs: 220 g

Dimensions and weight - Solar version (TS01-LS, TS01-CS):

  • Package Size / pcs: 150*120*55 mm
  • Weight / pcs: 220 g
