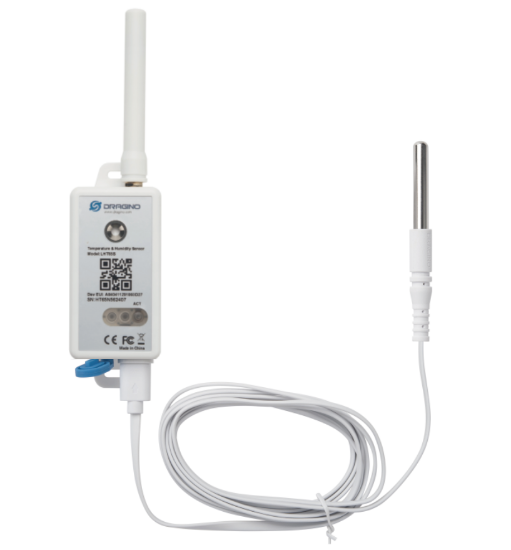

LHT65S Temperature/Humidity IoT Sensor with External Antenna

New customers will enjoy 60-Day's FREE access on Telemetry2Us' IoT Platform. Read more here...

The Dragino LHT65S Temperature & Humidity sensor is a top-of-the-line Long Range LoRaWAN Sensor designed for professional wireless sensor network applications. This innovative device boasts a built-in Temperature & Humidity sensor and an external sensor connector that enables users to connect to an external Temperature Sensor, offering enhanced flexibility and accuracy.

Telemetry2U has a live demo of a Dragino LHT65 Temperature/Humidity Sensor running on our IoT Platform .

*** Please note that items purchased from the store only include e-mail support. The configuration and installation is the users’ responsibility. If you require a higher level of support please contact sales for a quote on premium services.

SKU: LHT65SS-AU915
Manufacturer: Dragino
$95- +GST
Availability: In stock
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The LHT65S enables users to send data over extremely long ranges, thanks to its ultra-long range spread spectrum communication and high interference immunity, while minimizing current consumption. It is an ideal solution for wireless sensor network applications, including but not limited to irrigation systems, smart metering, smart cities, and building automation.

Featuring a built-in 2400mAh non-chargeable battery, the LHT65S can operate for up to an impressive 10 years*, providing extended operation times with minimal maintenance.

The LHT65S is fully compatible with LoRaWAN v1.0.3 Class A protocol, enabling seamless integration with a standard LoRaWAN gateway.

Moreover, the LHT65S supports a Datalog feature, allowing it to record data when there is no network coverage. Users can retrieve the sensor value later to ensure no missed readings, making it a reliable and efficient solution.

*Actual battery life may vary based on data sending frequency. Please refer to the battery analyzer chapter for more information.

Telemetry2U has a live demo of a Dragino LHT65 Temperature/Humidity Sensor running on our IoT Platform.

You can also read more about the Dragino LHT65 Temperature/Humidity Sensor and how its being used in Hospital and Laboratory enviroment to protect sensitive samples with email, SMS, or voice alerts while meeting NATA requirements on our applications page.





Dragino LHT65 Temperature and Humidity Sensor on T2U IoT Platform

If you have any questions about how Telemetry2U can help you get your world on the IoT cloud, please get in touch with us today, we're here to help.

Attribute nameAttribute value
Specifications

Built-in Temperature Sensor:

  • Resolution: 0.01 °C
  • Accuracy Tolerance : Typ ±0.3 °C
  • Long Term Drift: < 0.02 °C/yr
  • Operating Range: -40 ~ 80 °C

Built-in Humidity Sensor:

  • Resolution: 0.04 %RH
  • Accuracy Tolerance : Typ ±3 %RH
  • Long Term Drift: < 0.02 °C/yr
  • Operating Range: 0 ~ 96 %RH

External Temperature Sensor :

  • Resolution: 0.0625 °C
  • ±0.5°C accuracy from -10°C to +85°C
  • ±2°C accuracy from -55°C to +125°C
  • Operating Range: -55 °C ~ 125 °C
Features
  • LoRaWAN class A protocol
  • AT Commands to change parameters
  • Remote configure parameters via LoRaWAN downlink
  • Firmware upgradable via program port
  • Built-in 2400mAh battery with 10-year lifespan*
  • Built-in temperature & humidity sensor
  • Optional external sensors
  • Tri-color LED to indicate status
  • 3200 set sensor record with time stamp
Dimensions and weight
  • Device size (mm/pcs):135 x 70 x 30mm
  • Device weight: 105g
  • Package size (mm/pcs):145 x 80 x 50mm
  • Package weight: 170g
Package contents
  • 1 x LHT65
  • 1 x Waterproof DS18B20 temperature sensor with a 1 meter lead
  • 1 x Programming cable
Applications
  • Vaccine fridge and freezer monitoring
  • Laboratory equipment temperature monitoring
  • Hospital equipment temperature monitoring
  • Farming & agricultural
  • Residential
  • Industrial
Documents

Online Manual

Download Directory
